Hello World

IMPORTANT!

If you hadn't yet read the intro part of this section, please click here to read it first.

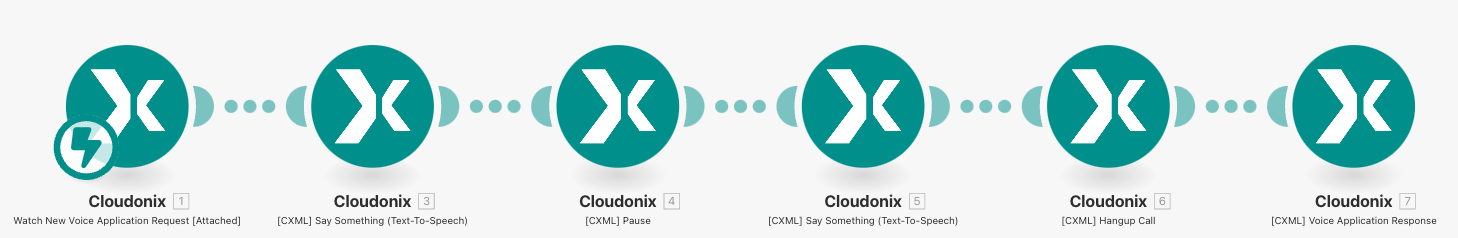

Scenario Diagram

How does it work?

Our scenario includes 6 different modules, according to table below:

#	Module	Description
1	Attached Voice Application	This is the Voice Application webhook.
2	Say Something	Generate a Text-To-Speech Message.
3	Pause	Pause the execution for predefined number of seconds.
4	Say Something	Generate a Text-To-Speech Message.
5	Hangup Call	Hangup the call.
6	Voice Application Response	Render the module output for execution.

Each of the modules will generate one part of the CXML document to be returned, while the response will assemble all parts to a single rendered response.

Module #1 Result - Voice Application Request

[
    {
        "To": "88888",
        "From": "999999",
        "body": {
            "ApiVersion": "1",
            "CallStatus": "in-progress",
            "From": "999999",
            "CallSid": "f3bd0737e5784aa7b1d285bc0154db10",
            "To": "88888",
            "SessionData": {
                "id": 10048287,
                "domainId": 755,
                "outgoingSubscriberId": 136490,
                "destination": "88888",
                "callerId": "999999",
                "token": "f3bd0737e5784aa7b1d285bc0154db10",
                "profile": {
                    "subscriber-sip-headers": {},
                    "callId": [
                        "28293431436702-395851086431570@192.168.2.161"
                    ]
                },
                "callStartTime": 1719354316138,
                "status": "processing",
                "vappServer": "xxx.xxx.xxx.xxx",
                "ringing": false,
                "domainNameOrId": "yyy.yyy.yyy.com"
            },
            "Domain": "yyy.yyy.yyy.com",
            "CallerName": "999999",
            "Direction": "subscriber",
            "AccountSid": "yyy.yyy.yyy.com",
            "Session": "f3bd0737e5784aa7b1d285bc0154db10"
        },
        "query": {},
        "Domain": "yyy.yyy.yyy.com",
        "CallSid": "f3bd0737e5784aa7b1d285bc0154db10",
        "headers": {
            "connection": "upgrade",
            "host": "hook.eu1.make.com",
            "x-forwarded-for": "xxx.xxx.xxx.xxx, zzz.zzz.zzz.zzz, hook.eu1.make.com",
            "x-forwarded-proto": "https",
            "x-real-ip": "zzz.zzz.zzz.zzz",
            "x-request-id": "f4b4bec1b49c13c9e6e0d9c9252f648d",
            "content-length": "701",
            "cdn-loop": "cloudflare",
            "cf-ipcountry": "US",
            "accept-encoding": "gzip, br",
            "cf-ray": "89985f5d0cc62c54-ORD",
            "cf-visitor": "{\"scheme\":\"https\"}",
            "user-agent": "APP.Core/5.3.480",
            "content-type": "application/json",
            "authorization": "Bearer make-applications-key",
            "x-cx-callername": "999999",
            "x-cx-session": "f3bd0737e5784aa7b1d285bc0154db10",
            "x-cx-apikey": "XI17F8CF2305ED4137A194D1D3A62A3451",
            "x-cx-from": "972549371955",
            "x-cx-stageid": "5180d5c3a7be58e9",
            "x-cx-domain": "yyy.yyy.yyy.com",
            "x-cx-to": "88888",
            "x-cx-source": "SUBSCRIBER",
            "cf-connecting-ip": "zzz.zzz.zzz.zzz"
        },
        "CallStatus": "in-progress",
        "SessionData": {
            "id": 10048287,
            "domainId": 755,
            "outgoingSubscriberId": 136490,
            "destination": "88888",
            "callerId": "999999",
            "token": "f3bd0737e5784aa7b1d285bc0154db10",
            "profile": {
                "subscriber-sip-headers": {},
                "callId": [
                    "28293431436702-395851086431570@192.168.2.161"
                ]
            },
            "callStartTime": 1719354316138,
            "status": "processing",
            "vappServer": "zzz.zzz.zzz.zzz",
            "ringing": false,
            "domainNameOrId": "yyy.yyy.yyy.com"
        },
        "CallDirection": "subscriber",
        "CallStartTime": 1719354316138,
        "SessionStatus": "processing",
        "MakeScenarioURL": "https://hook.eu1.make.com/uwneohf2o1gipop22jt97qahvsmidamk"
    }
]

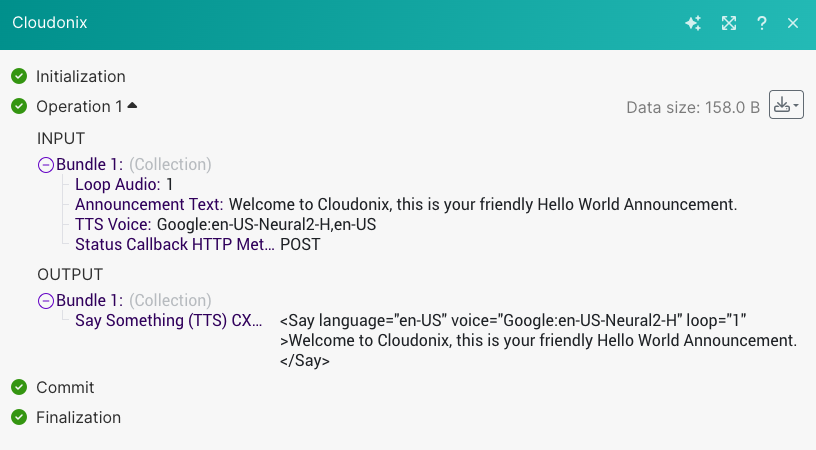

Module #2 Result

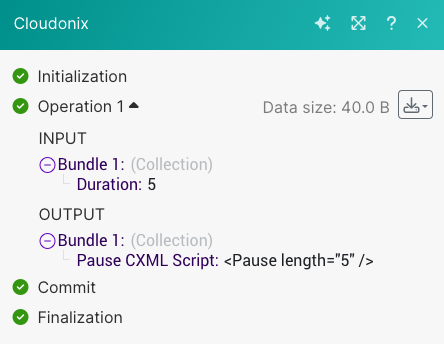

Module #3 Result

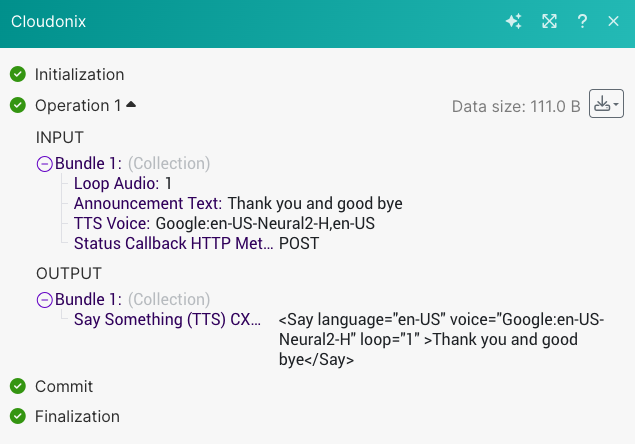

Module #4 Result

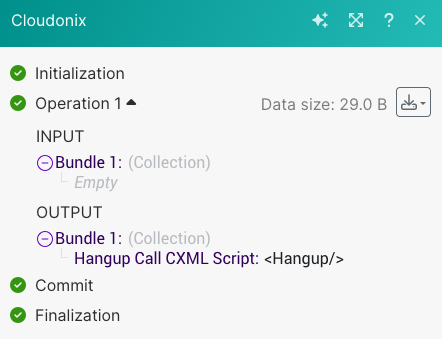

Module #5 Result

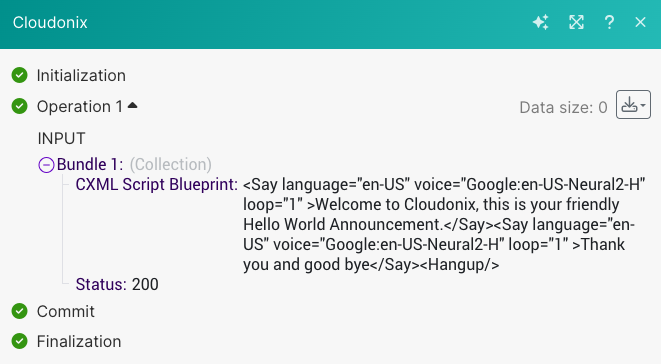

Module #6 Result

Upon completing the scenario execution, the final rendered CXML document looks like this:

<Response>
    <Say language="en-US" voice="Google:en-US-Neural2-H" loop="1">Welcome to Cloudonix, this is your friendly Hello World Announcement.</Say>
    <Pause length="5"/>
    <Say language="en-US" voice="Google:en-US-Neural2-H" loop="1">Thank you and good bye</Say>
    <Hangup/>
</Response>
