Scenario: Status Watcher

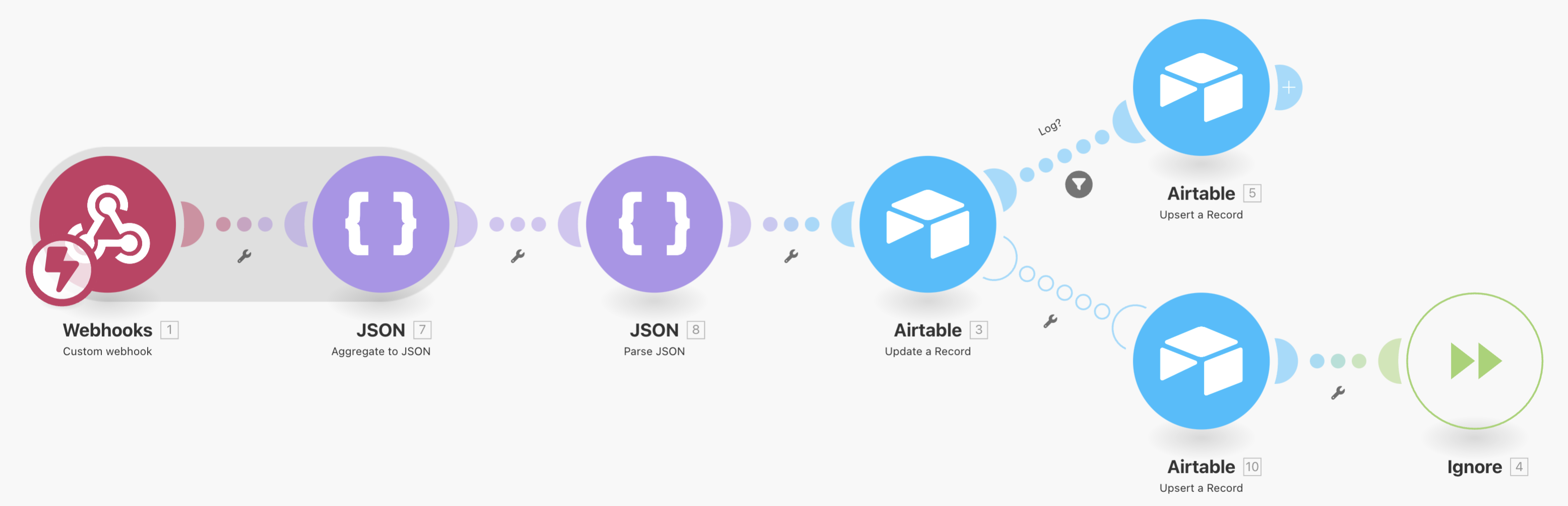

Complete Scenario​



The scenario accepts a Cloudonix provided status update, as per the REST API - Session Data Model. Here is a sample of what the content of the web hook may look like:

[
    {
        "id": 11531480,
        "domainId": 809,
        "domain": "cloudonix-demo-customer.cloudonix.net",
        "subscriberId": null,
        "destination": "1212121212",
        "callerId": "1313131313",
        "direction": "application",
        "token": "aa9d853f76c6466ebfe782b830b0b119",
        "createdAt": "2024-12-10T11:06:14Z",
        "modifiedAt": "2024-12-10T11:06:39Z",
        "timeLimit": null,
        "status": "connected",
        "vappServer": "172.24.41.217",
        "callback": "https://hook.eu1.make.com/j1154qs97sjspv9kpb3b8r9orvruxwnv?queueId=rec0BZgAUDjFK7x26",
        "callStartTime": 1733828774144,
        "startTime": "2024-12-10T11:06:14.144Z",
        "callAnswerTime": 1733828782599,
        "answerTime": "2024-12-10T11:06:22.599Z",
        "profile": {
            "app-call-data": {
                "cxml": "<Response>\n  <Pause length=\"1\" answer=\"true\" />\n  <Dial callerId=\"1212121212\">1313131313</Dial>\n</Response>",
                "wait": "connected",
                "timeout": 60,
                "record": false,
                "recordingStatusCallbackMethod": "POST",
                "recordingStatusCallbackEvent": [
                    "completed"
                ],
                "trim": "trim-silence",
                "machineDetectionTimeout": 30,
                "machineDetectionSpeechThreshold": 2400,
                "machineDetectionSpeechEndThreshold": 1200,
                "machineDetectionSilenceTimeout": 5000,
                "asyncAmd": false,
                "asyncAmdStatusCallback": "",
                "asyncAmdStatusCallbackMethod": "POST"
            },
            "callId": [
                "ab2ec074-469b-43f4-a9c4-11c6ba594f7b",
                "5cfbc86b-7536-4818-9dcf-e1f051eafd9d",
                "d4ff8581-3dd0-4f62-a22c-5c61ca820bef"
            ],
            "destination-types": [
                {
                    "SIP/uri1@border.prod2.cloudonix.io": "alphanumeric"
                },
                {
                    "SIP/uri1@border.prod2.cloudonix.io": "alphanumeric"
                }
            ],
            "terminating-trunk-id": 653,
            "terminating-trunk": {
                "id": 653,
                "tenantId": 177177,
                "domainId": 809177,
                "name": "outbound-trunk1",
                "ip": "outbound-trunk.example.com",
                "port": 5060,
                "active": true,
                "transport": "udp",
                "prefix": "",
                "direction": "public-outbound",
                "profile": {
                    "hostname": null,
                    "ruri-domain": null,
                    "connection-timeout": null,
                    "provisional-timeout": null,
                    "headers": {}
                },
                "requestDomain": "outbound-trunk.example.com"
            },
            "application": [
                {
                    "time": "2024-12-10T11:06:22Z",
                    "url": "",
                    "source": "<Response>\n  <Pause length=\"1\" answer=\"true\" />\n  <Dial callerId=\"1212121212\">1313131313</Dial>\n</Response>",
                    "context": "applicationCall"
                }
            ]
        },
        "lastError": "",
        "log": [
            {
                "time": "2024-12-10T11:06:14Z",
                "url": "http://api.cloudonix.io/calls/cloudonix-demo-customer.cloudonix.net/application",
                "source": "<Log><Principal>1:voiceai-domain-key</Principal><Message>Creating outbound application call</Message><Request>POST http://api.cloudonix.io/calls/cloudonix-demo-customer.cloudonix.net/application</Request><Body>{\"cxml\":\"<Response>\\n  <Pause length=\\\"1\\\" answer=\\\"true\\\" />\\n  <Dial callerId=\\\"1212121212\\\">1313131313</Dial>\\n</Response>\",\"timeout\":60,\"callback\":\"https://hook.eu1.make.com/j1154qs97sjspv9kpb3b8r9orvruxwnv?queueId=rec0BZgAUDjFK7x26\",\"caller-id\":\"1212121212\",\"destination\":\"1313131313\"}</Body></Log>",
                "context": "api"
            },
            {
                "time": "2024-12-10T11:06:22Z",
                "url": "",
                "source": "<Response>\n  <Pause length=\"1\" answer=\"true\" />\n  <Dial callerId=\"1212121212\">1313131313</Dial>\n</Response>",
                "context": "applicationCall"
            }
        ],
        "errors": [
        ],
        "action": "updated",
        "reason": "vapp",
        "eventId": "e3292502-98ae-48fc-b8fe-6eaba052fa00",
        "queueId": "rec0BZgAUDjFK7x26"
    }
]
