Domain Management

With Cloudonix, managing multiple service domains (or accounts) is easy and simple. Unlike other platforms, Cloudonix uses a domain naming convention, similar to the way Internet domains naming (FQDN) works. In fact, for ease of use, we recommend using Internet valid FQDNs as your domains.

What is a Cloudonix domain?

In Cloudonix, a domain represents a walled-garden environment, where various resources interact. These resources can be users (admin users), subscribers (remote devices), applications (voice applications) and more. For simplicity, in Cloudonix we refer to all of these as Models or Objects. Each with its own set of properties and functionality.

Why multiple domains?

Unlike other CPaaS platforms, Cloudonix is designed to enable developers to build multi-tenant services, while keeping the highest level of security and seperation possible. As previously indicated, a domain is a walled-garden, which means, resources (Models/Objects) from one domain, can't interact or affect another domain. These unique approach enables developers to build sub-accounts or sub-brands, under their existing account - while providing other people access to a specific domain.

Cloudonix domain properties

A Cloudonix domain includes various properties, which affect how the domain functions. Some of the properties require additional information, such as Registration Free Dialing properties, while others are relatively self-explanatory.

Property	Description	Type	Default
CNAME Aliases	A CNAME Alias specifies an alias to the current Cloudonix domain name. A CNAME Alias can be used to define your own DNS FQDN that will be used as an alias to the provisioned Cloudonix domain.	String	None
Regisration Free Control Endpoint	Registration Free Dialing Guide	String	None
Regisration Free Authorization Key	Registration Free Dialing Guide	String	None
Domain Request Authorization Key	A unique string that will be added to Voice Application Requests as an authorization header.	String	None
Authorization Key Type	How will the authorization key be presented. Options are: RFC 6750 Bearer Token, Custom Header or Query Parameter	String	RFC 6750 Bearer Token
No Answer Timeout	When dialing a destination, how long to wait for an answer.	Number	60
Allow Border-To-Border Calls	Trunk Management Guide	Boolean	False
Redirect unknown destination to Border	Trunk Management Guide	Boolean	True
Play ringtone to subscribers immediately	Subscribers Management Guide	Boolean	False
Domain session update callback URL	A remote URL to submit real-time session update reports.	String	None
Least Cost Routing Server Address	A remote URL for Least Cost Routing services (Deprecated)	String	None
Pass Caller ID	Pass the inbound Caller-ID Presentation (SIP From Header) to the destination.	Boolean	True
Allow subscribers to create sessions	Subscribers Management Guide	Boolean	True
API Messaging Notification URL	Messaging Guide	String	None
API Messaging Archive Bucket (S3)	[Messaging Guide](/Documentation/apiWorkflow/messaging	String	None
CDR Delivery Endpoint	A remote URL to submit call detail records, at the end of each call.	String	None
Recording Media Format	When performing a recording (call or message), what format shall be used to generate the file for download.	String	mp3

The Domains View

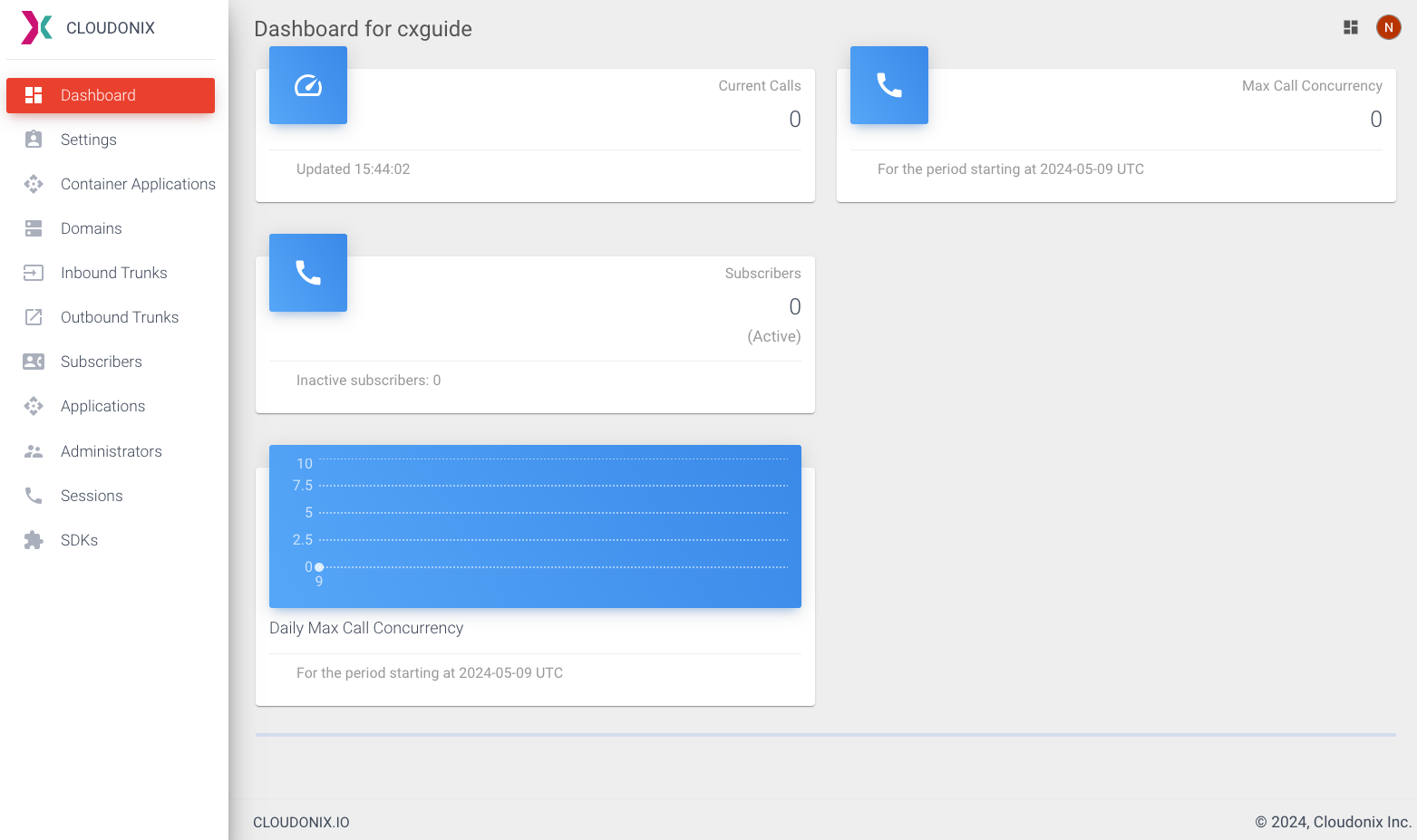

Once you've finished creating your Cloudonix account, and you're logged on to the cockpit, your screen should look like the following:

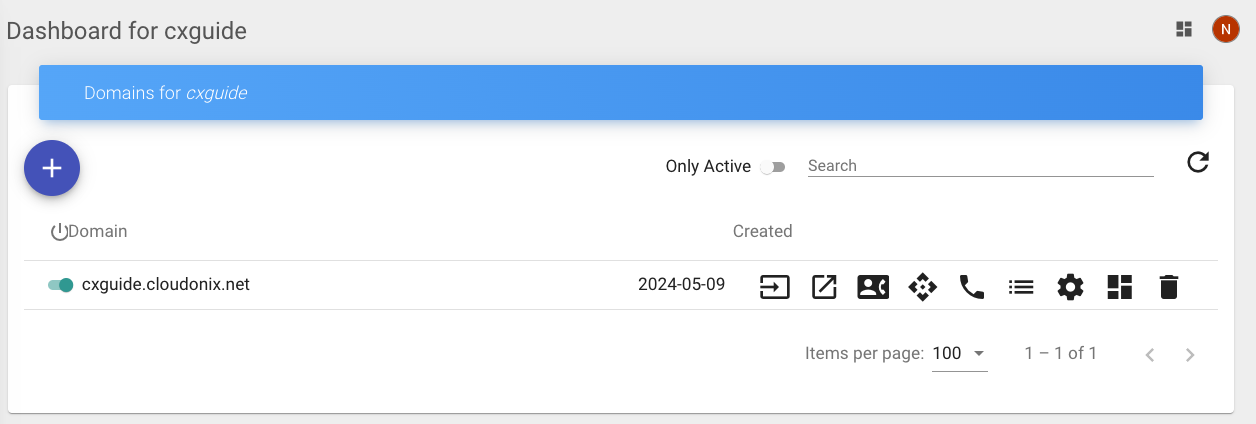

Click the Domains menu option, to access the domains management view. The screen will change, displaying a list of available domains. Assuming this is your first domain, the list should look like this:

Cloudonix domain associated Models/Objects

On the right hand side are your Cloudonix Domain associated Models/Objects that can be managed. These are:

Icon	Title	Description
input	Inbound Trunk	Trunk Management Guide
launch	Outbound Trunk	Trunk Management Guide
contact_phone	Subscribers	Subscribers Management Guide
api	Voice Applications	Voice Applications Management Guide
phone	Sessions	A list of ongoing and completed sessions (limited to the last 100 sessions). Additional sessions can be obtained via the Sessions REST API.
list	Call Records	A list of completed call records (Note: will be removed in future versions of the cockpit).
settings	Domain Properties	Manage the domains properties and settings.
dashboard	Domain Dashboard	View the domain statistical dashboard.
delete	Delete	Delete the domain and it's associated resources.
